Topic: CL248
| CLICK PID Errors |
Topic: CL248
|
The CLICK PID Errors are indicated in two places; 1) the PID Monitor Window and 2) register DSn+00.
You may see an error indication on the PID Loop in the PID Loop Monitor selection in the Project tab.

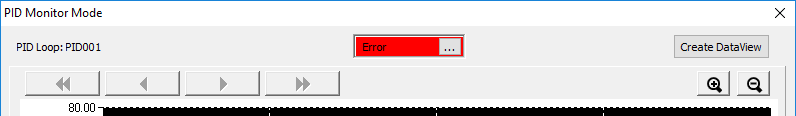

Opening the PID Monitor you will see an Error indicator at the top of the PID Monitor Window.

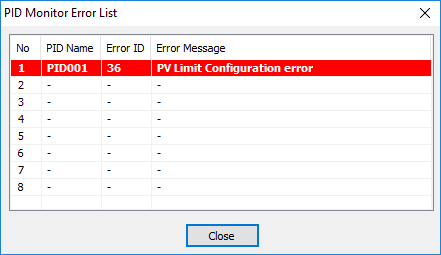

Clicking on this indicator opens the PIS Monitor Error List.
If there is more than one error, the DS register will contain the lowest active error number. When it is cleared, the next lowest error is indicated.
The most likely cause of errors on a new PID Loop is the PID Loop was configured in the PID Configuration, the program was downloaded to the PLC, but the PID Configuration data was not written to the PLC registers. Open the PID Loop Configuration and select Write Register Values to PLC as a first step to clear errors.
|
CLICK PID Errors |
||||||
| No. | Error contents | Function | Associated Register | Conditions | ||
| 0 |
No error （normal） |
-- |
-- |
-- |
||
| 10 |
Sample Rate out of range |
Calc. |
DSn+05 |
<100 or >30000 |
||
| 11 |
Derivative Gain out of range |
Calc. |
DSn+06 |
>100 |
||
| 12 |
PWM period out of range |
Output |
DSn+07 |
<1 or >600 |
||
| 13 |
PV Input Filter out of range |
PV |
DSn+08 |
<1 or >100 |
||
| 20 |
Set point Value out of range |
SP |
DFn+00 |
Setpoint is out of range when value is not a number |
||
| 21 |
SP Lower Limit out of range |
SP |
DFn+01 |
Out of range, when the value is not a number |
||
| 22 |
SP Upper Limit out of range |
SP |
DFn+02 |
Out of range, when the value is not a number |
||
| 23 |
SP Limit configuration error |
SP |
DFn+02 |
Lower Limit > Upper Limit |
||
| 24 |
Error Dead band out of range |
Err Term |
DFn+03 |
NA |
||
| 25 |
Bias (Integrator) out of range |
Calc. |
DFn+04 |
NA |
||
| 26 |
Proportional Gain (P) out of range |
Calc. |
DFn+05 |
<0.01 or >10000.0 |
||
| 27 |
Reset (I) Time out of range |
Calc. |
DFn+06 |
<0.01 or >6000.0 |
||
| 28 |
Derivative Gain (D) out of range |
Calc. |
DFn+07 |
<0 or >6000.0 |
||
| 30 |
Control Output Lower Limit out of range |
Output |
DFn+09 |
<0 or >100 |
||
| 31 |
Control Output Upper Limit out of range |
Output |
DFn+10 |
<0 or >100 |
||
| 32 |
Control Output Limit configuration error |
Output |
DFn+10 |
Lower Limit > Upper Limit |
||
|
DFn+11 |
||||||
| 33 |
Raw Process Variable (PV) out of range |
PV |
DFn+11 |
NA |
||
| 34 |
PV Lower Limit out of range |
PV |
DFn+22 |
Out of range, when the value is not a number |
||
| 35 |
PV Upper Limit out of range |
PV |
DFn+23 |
Out of range, when the value is not a number |
||
| 36 |
PV Limit Configuration error |
PV |
|
Lower Limit > Upper Limit |
||
| 40 |
PV-LL Alarm out of range |
Alarm |
DFn+13 |
NA |
||
| 41 |
PV-LAlarm out of range |
Alarm |
DFn+14 |
NA |
||
| 42 |
PV-HAlarm out of range |
Alarm |
DFn+15 |
NA |
||
| 43 |
PV-HH Alarm out of range |
Alarm |
DFn+16 |
NA |
||
| 44 |
PV Alarm configuration error |
Alarm |
DFn+13 |
(LL>L)or(L>H)or(H>HH) |
||
|
DFn+14 |
||||||
|
DFn+15 |
||||||
|
DFn+16 |
||||||
| 45 |
PV Deviation Alarm (H) out of range |
Alarm |
DFn+17 |
<0 |
||
| 46 |
PV Deviation Alarm (HH) out of range |
Alarm |
DFn+18 |
<0 |
||
| 47 |
PV Deviation Alarm configuration error |
Alarm |
DFn+17 |
H>HH |
||
|
DFn+18 |
||||||
| 48 |
PV Rate of Change out of range |
Alarm |
DFn+19 |
<0 |
||
| 49 |
PV Alarm Hysteresis out of range |
Alarm |
DFn+20 |
<0 |
||
| 200 |
Auto tuning Output Hysteresis out of range |
Autotune |
DFn+21 |
<0.1 or >10 |
||
| 202 |
Autotune Control Output out of range |
Autotune |
-- |
When control output exceeds a limit during autotuning. |
||
|
Note: Any other Error number is not a invalid error. Check that some other process is not writing data into the assigned error register. |
