Overview

The PID List View provides a tabular view of the PID Parameters for a selected PID Loop.

Opening the PID List View

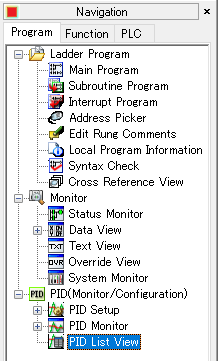

To open the PID List View, from the Monitor menu, select Setup, then Monitor, then PID List View; or, from the Program tab under PID (Monitor/Configuration), double-click PID List View.

Parameter Tab

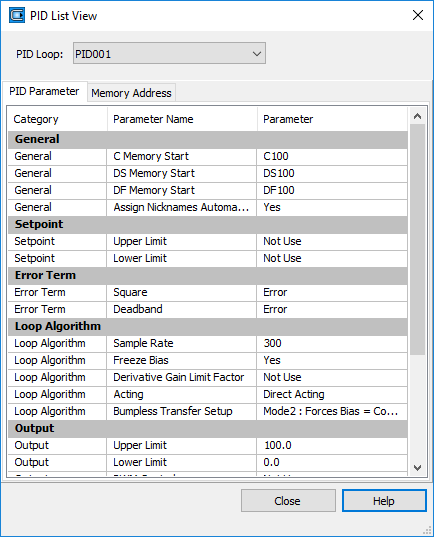

The PID List View dialog box opens. Each parameter is listed by category. The category corresponds to the tabs in the PID Configuration dialog box. The parameters listed are the same as those found in the PID Configuration dialog box.

The parameters and values listed here are for reference only and are not editable.

Memory Address Tab

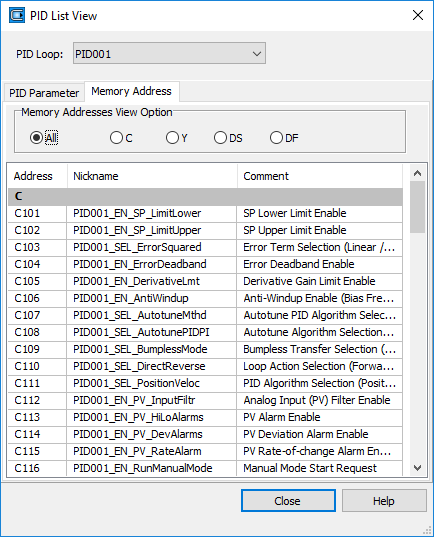

The Memory Address tab lists all of the PLC Addresses associated with the PID Loop. The list contains:

PLC Address

Address Nickname

Address Comment

Memory Address View Option

Each Address Range can be viewed separately by choosing a C, Y, DS or DF address view option.
