Send Email (EMAL) Instruction

Mnemonic (Keyboard Shortcut) = EMAL

Icon / Button =

Purpose

Send either a standard SMTP or TLS email with text and/or embedded data to Email recipient(s) via the CPU Ethernet Port. A TLS Mail Account can also send an attachment and/or log files which can be the latest file stored in the USB or Micro SD memory device.

Mail Account option requires the use of a predefined Mail Account that was created in the Hardware Configuration. The SMTP Client device will specify the SMTP server's TCP/IP address information and user account authentication (if required).

Instruction Parameters

Parameter	Parameter Type	Requirements	Description
Enable	Ladder Input	Must Have	Edge-driven. When Enable is ON, the instruction will operate for one scan.
Mail Account	Dropdown	Optional	A Mail Account must be created in the Hardware Configuration for this instruction. Once a Mail Account has been created, it can be selected in this field.
SMTP Server IP Address	Constant	Optional	The IP Address of the Email server that the message will be sent to. The IP Address Must Have periods separating the octets.
From	String / Constant	Must Have	The Email Address of the Sender, to be displayed in the From field.
Subject	String / Constant	Must Have	The Text to be displayed in the Subject field of the Email.
Message	String / Constant	Must Have	The Message that will be sent in the text body of the Email. If not using a constant then use the Pack String (PKS) instruction to build your message.
Attach Event and Error Files	Checkbox	Optional	A copy of the CPU error and event history will be attached to the Email. *See Note 1
Attach Log File	Checkbox	Optional	A copy of the most recent log file will be attached to the Email. *See Note 1
Destination Email Address	String / Constant	Must Have	The Email Address to send the Message to.
Structure	Checkbox	Optional	Enable the use of Structure.
In Progress	Boolean Tag	Optional	Status Bit that specifies a request is in progress inside of the CPU (sent from the instruction but not yet sent out the Ethernet Port). The Status Bit reflects the status of the individual request. *See Note 1
Sent	Boolean Tag	Optional	The Mail Sent bit is turned ON once the instruction has completed successfully. This bit will reset whenever the instruction is enabled in the ladder.
Success	Boolean Tag	Optional	Status bit that specifies a request has been sent and a reply has been received, but it may not necessarily have been a good reply. The Status bit reflects the status of the individual request. *See Note 1
Error	Boolean Tag	Optional	Status bit the Email has been sent and a reply with an Error has been received from the Email Server. Check the Error Response String to determine the failure. The Status bit reflects the status of the individual request. *See Note 1
Error Response	String	Optional	String that holds the Error response. *See Note 1

Note 1: Only available when Mail Account option is selected.

Note 2: The Send Email instruction uses the External Ethernet Port configured in the Hardware Configuration. See more details in the Communications topic.
Note 3: Only one valid e-mail address is allowed per string tag for the from & destination fields.
Note 4: Depending on your mail server an exception error may occur if the From address is different than Mail Account credentials.
Note 5: If attach error & event or Log file options are selected. Ensure a Portable Memory device is inserted & the files do exist or an error will occur.
Note 6: You may have to enable the ability to allow less secure applications setting on your email server account.
Note 7: Ensure CPU date & time is within 2 weeks of current if using a CA certificate in your mail account configuration or you may receive a "TLS handshake" error.

Send a Text Message via Email

Reference your cell provider for additional details on the ability to send an email-to-text service that will allow standard text messages to be generated and then sent to a specified cell phone number instead of an email account. This is a quick and easy way to test your SMTP Client settings from a P Series CPU to your cell phone. For example: AT&T customers tendigitcellnumber@txt.att.net

Instruction Configuration

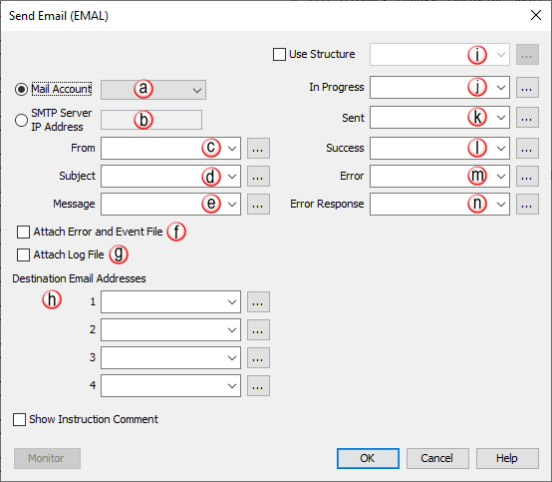

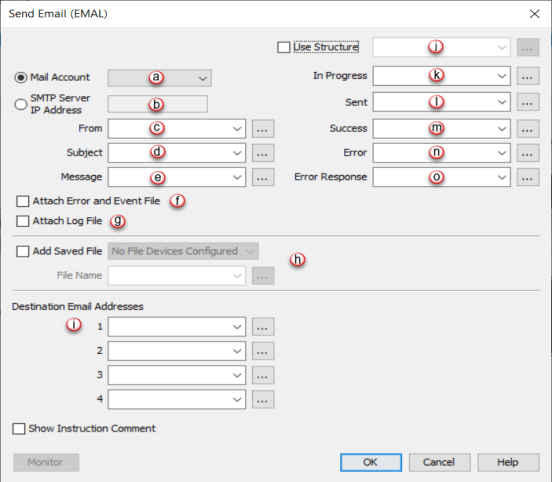

When Send Email Instruction is selected the window shown below opens with defaults shown.

Parameter Configuration Table

Module Setup

Notes

Mail Account

Choose Email Account Server setup in Hardware Configuration window.

SMTP Server IP Address

Enter the IP Address of the Email Server. SMTP, by default, only uses Port 25. If the mail server requires encryption and the 'SMTP Server IP Address' field is used, the EMAL instruction will silently fail.”

From

Enter the Email Address of the Sender. If using a Constant Data Type, quotation marks must be used at the beginning and end of the email address.

Subject

Enter the Subject of the Message. If using a Constant Data Type, quotation marks MUST be inserted at the beginning and end of the text.

Message

Enter the Message to be sent. If using a Constant Data Type, quotation marks MUST be inserted at the beginning and end of the text.

Attach Error/Event Files

Select if attachment of Error/Event Files is needed.

Attach Log Files

Select if attachment of Log Files is needed.

Destination Email Addresses

Enter Email Address(es) of Recipient(s). If using a Constant Data Type, quotation marks must be used at the beginning and end of the email address.

Use Structure

Select if Structures are used.

In Progress

Select a Boolean Tag for In Progress.

Complete

Select a Boolean Tag for Complete.

Success

Select a Boolean Tag for Success.

Error

Select a Boolean Tag for Error.

Exception Response

Select a String Tag for Response Errors.

Application Example

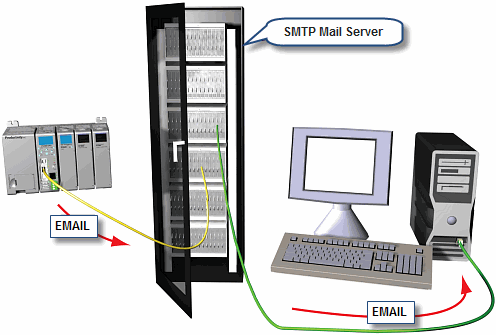

Send Email Instruction allows a pre-typed Message and CPU Tagname Value to be Emailed from the CPU module through your SMTP server. This is essentially the same as is done on most network printers.

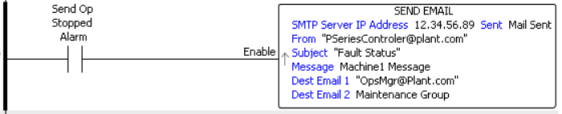

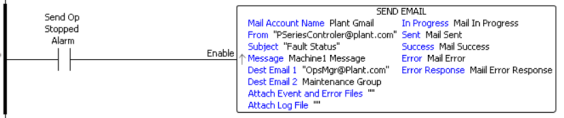

Rung Example

SMTP

TLS

Error Response Table

General
Error Message	Possible Cause	Possible Solution
Error in From Address	The "From" tag was left blank.	Populate the "From" tag with a valid string or enter a constant in the EMAL instruction parameter.
Error in Destination Address	A "Destination Email Address" tag was left blank.	Populate the "Destination Email Address" tag with a valid string or enter a constant in the EMAL instruction parameter.
288 Can't connect to server	No DNS server settings	Add a preferred DNS IP address. An optional alternate DNS address server IP address can be entered.
Server Specific
AOL
Error Message	Possible Cause	Possible Solution
550 Request failed; Mailbox unavailable	Invalid Sender Address in EMAL instruction.	Ensure that the sender address is correctly entered and free of typos. You can verify the sender address by logging in to your email account online.
535 5.7.1 Authentication failed	Invalid User Name or Password is in the Mail Account properties.	Under Hardware Configuration > Mail Accounts: Open the AOL widget to show Properties and enter a valid User Name and User Password.

GMAIL
Error Message	Possible Cause	Possible Solution
535-5.7.8 Username and Password not accepted	Invalid User Name or Password is in the Mail Account properties.	Under Hardware Configuration > Mail Accounts: Open the Gmail widget to show Properties and enter a valid User Name and User Password.

OUTLOOK
Error Message	Possible Cause	Possible Solution
535 5.7.3 Authentication unsuccessful	Invalid User Name or Password is in the Mail Account properties.	Under Hardware Configuration > Mail Accounts: Open the Outlook widget to show Properties and enter a valid User Name and User Password.
554 5.2.0 STOREDRV.Submission.Exception. SendAsDeniedException	Outlook Server has identified the Client device as a possible SPAM generator and may have locked the account.	The user will have to take the steps to unlock their account. Afterwards, reduce the frequency of triggered EMAL instructions.

YAHOO
Error Message	Possible Cause	Possible Solution
550 Request failed; Mailbox unavailable	Invalid Sender Address in EMAL instruction.	Ensure that the sender address is entered correctly and free of typos. You can verify the sender address by logging in to your email account online.
535 5.7.1 Authentication failed	Invalid User Name or Password is in the Mail Account properties.	Under Hardware Configuration > Mail Accounts: Open the Yahoo widget to show Properties and enter a valid User Name and User Password.
535 Authorization failed	Invalid User Name or Password is in the Mail Account properties.	Under Hardware Configuration > Mail Accounts: Open the Yahoo widget to show Properties and enter a valid User Name and User Password.
