Create System Report

The System Report is a detailed report contained in a .zip file that can be emailed to ADC tech support personnel for troubleshooting purposes.

Creating the System Report

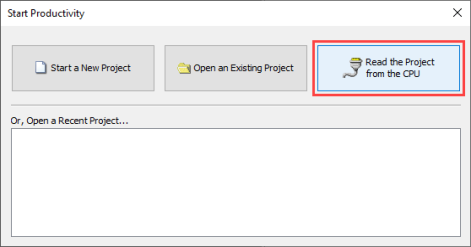

Step 1: Go online with the CPU and select the Read Project From CPU option. This will ensure tech support gets the file currently running in the CPU.

Note: A System Report can still be created without being online with the CPU; however, the following files will be partially or completely excluded from the .zip file (it is highly recommended that an online report be created):
1) sw_fw versions - Only software version will be available. Firmware version will be excluded.
2) CPU_history - CPU history logs (whole file excluded)

Step 2: Select Create System Report from the Help Menu located on the Main Menu.

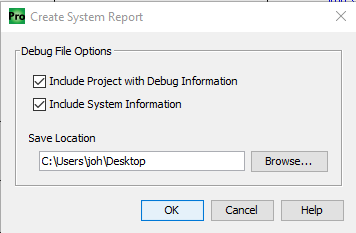

Step 3: Leave Include Project with Debug Information checked to include the project and choose a location to store the .zip file, then hit OK.

Note: The .zip file will be saved to the desktop by default if another location is not specified.

System Report Contents

File Name	Available Online	Available Offline	Description
log folder	X	X	Time-stamped log files that record the connected CPU (PAC) history
connection_info.txt	X	X	Contains PC Network Card information and CPU connection information
cpu_proj.adpro	X	X	CPU project file *See Note 1
customer_proj.adpro	X	X	A copy of the project file from the project editor window (Productivity Suite software).
customer_proj_Basic.csv	X	X	.csv file containing list of all tags included with the project, formatted to facilitate import into C-more projects*See Note1
customer_proj_Extended.csv	X	X	.csv file containing list of all tags included with the project *See Note 1
customer_proj.csv	X	X	.csv file containing list of all tags included with the project, formatted to facilitate import into C-more projects*See Note1
hw_config.txt	X	X	List of module part numbers in local and expansion bases
pac_history.txt	X	X	List of critical, non-critical and event history logs, along with CPU performance (scan time) and CPU status
restart.txt	X	X	List of critical, non-critical and event history logs, along with additional information related to a CPU restart. Only generated when the CPU has experienced an unexpected restart.
sw_fw_versions.txt	X	X	Productivity Suite software version and details about the CPU and its modules: builds, date codes, hardware/firmware revisions *See Note2
system_info.txt	X	X	PC display, memory, and OS information
system_perf.txt	X	X	Information about the pc running the Productivity Suite software. It is not available when the Include System Information checkbox is not selected.
watchdog.txt	X		List of critical, non-critical and event history logs, along with additional information related to a watchdog timeout. Only generated when the CPU has experienced a watchdog timeout.

Note1: Not included if Include Project with Debug Information option is not selected.

Note2: When offline, SW version is the only version available.
