Compile Project

Compile Project is used to Compile a new or edited project before saving it to disk or transferring to a CPU.

Accessing Compile Project

There are three methods to access Compile Project:

Method 1

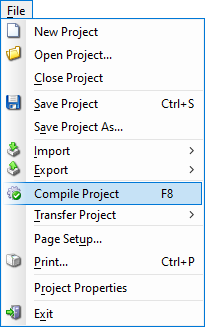

Select Compile Project from the File Menu.

Method 2

Select the Compile Project Icon on the Compile and Transfer Toolbar.

Method 3

Use the shortcut key F8.

Compiling a Project

When a project is ready to be Compiled, select Compile Project and one of the following pop up windows will appear:

• Compiled Window: The project compiled successfully. Click OK.

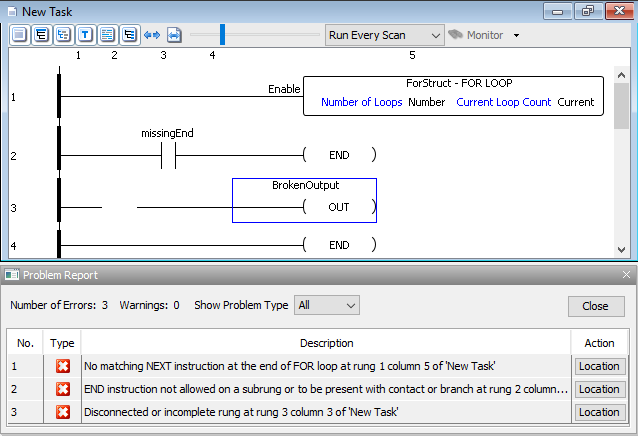

• Error Window: There was an error detected in the project.



A Problem Report will be displayed showing all project compile errors.
