Auto Logging Setup

Auto Logging allows the user to create an SD Card configuration to log data without having to write a project change to the XMC. The XMC will read the configuration on the SD Card and perform the datalogging automatically.

Step	Action

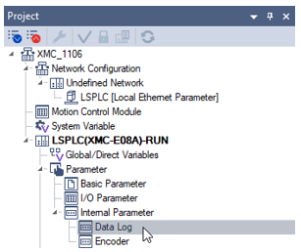

1	In XG5000 Project, open Data Log under Internal Parameter in the Project window.
2	Set Auto Logging Setting to Enable and press the Save Auto Logging Settings button.
3	Write the auto logging configuration to the SD memory card.
4	Press OK when message appears that the auto log configuration file was written to the SD card.
5	Insert SD memory card in to the XMC to start auto logging data.





































LM307-1
