XGB EtherCAT Speed and Position Synchronization with XPM_SSP, XPM_SSS, and XPM_SSSP

XEM CPU has a few options for synchronizing a sub-axis with a master. The axes being controlled must already be configured using the XG-PM software before using the synchronization function blocks. XPM_ECON and XPM_SVON must be executed before any motion.

Function Block Description in XG5000 Function
XPM_SSP Position synchronization Execute a step in the Position Data table of the slave axis after the master axis reached the defined position.
XPM_SSS Speed synchronization Control the speed of the slave axis according to the ratio setup with the master axis.
XPM_SSSP Positioning speed sync Control the speed of the slave axis according to the ratio setup with the master axis until the slave axis reaches the defined position.

XPM_SSP is used for position synchronization of a sub-axis. A step in the position data table is executed when the master axis reaches synchronization position (MST_ADDR). The axis that uses the XPM_SSP function block is considered the sub-axis.

Element Name Element Type Description
REQ Input Edge detected request to execute the function block.
BASE Input Base number of the motion controller. Set to 0.
SLOT Input Slot number of the motion controller. Set to the slot number of the XBF-PN04B or XBF-PN08B module.
AXIS Input Axis number to control. XBF-PN04B:1~4, XBF-PN08B:1~8
STEP Input Step in the position table to execute when master axis reaches MST_ADDR position.
MST_AXIS Input Master axis number. XBF-PN04B:1~4, XBF-PN08B:1~8 and must not be the axis executing the XPM_SSP.
MST_ADDR Input Master position to execute the position synchronization for the sub-axis.
DONE Output Status that function block is done.
STAT Output Current status of the function block. Non-zero numbers will be an error or warning.

This example is in scan program LP634_XPM_SSP_Example in OnlineHelp_ECAT_Example. In this example Axis 1 is the master axis and Axis 2 is the sub-axis.

  • When the ‘Run_Example’ variable is true, Axis 1 will do a speed control move to 1000 pulses/sec and Axis2 will execute an XPM_SSP function block.

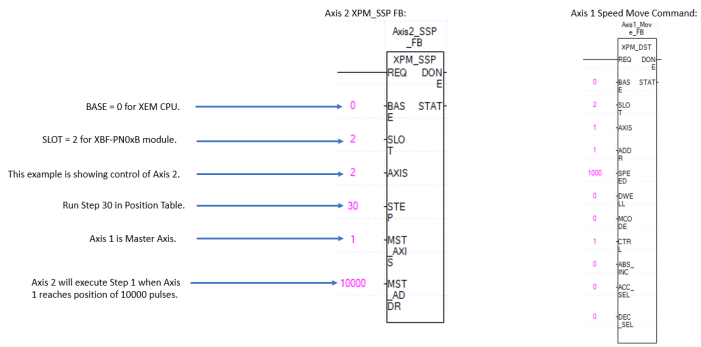

  • Axis 2’s XPM_SSP is setup to execute step 1 of the position table when Axis 1’s position reaches 10000 pulses.

  • Home Axes before setting ‘Run_Example ‘ to true.

Axis 2 Position Table Step 30:

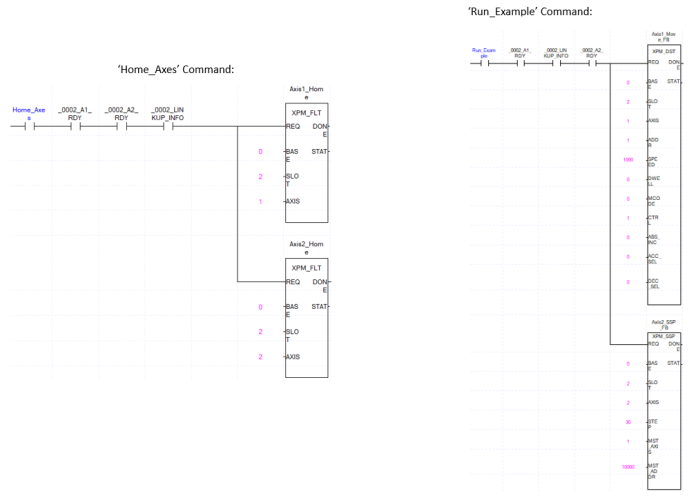

XPM_SSP LD Code

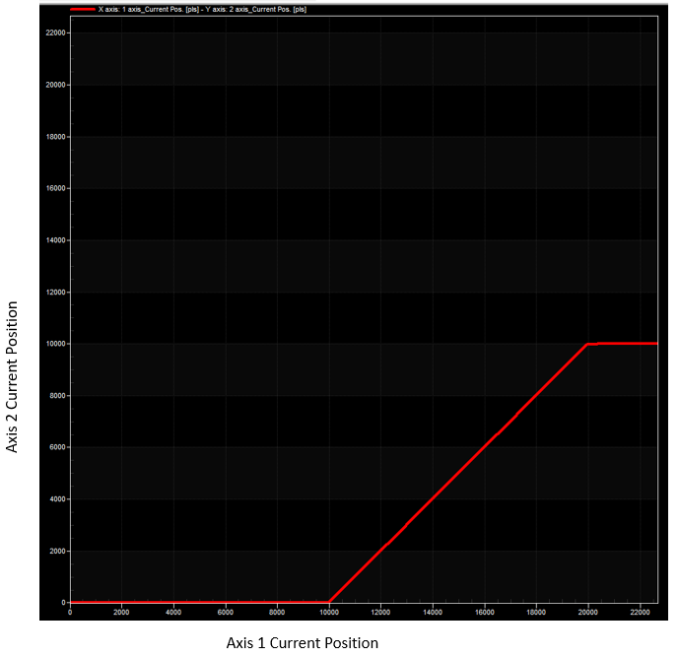

XPM_SSP Trend

XPM_SSS is used to control the operating speed between two axes at the set ratio. The synchronization is done with the Master Ratio and Sub-axis Ratio.

  • If master ratio value is larger, then the sub-axis will move slower than the master.

  • If sub-axis ratio value is larger, then the sub-axis will move faster than the master.

  • The sub-axis will move in the same direction as the master axis if the ratio is positive.

  • The sub-axis will move in the opposite direction of the master axis if the ratio is negative.

Element Name Element Type Description
REQ Input Edge detected request to execute the function block.
BASE Input Base number of the motion controller. Set to 0.
SLOT Input Slot number of the motion controller. Set to the slot number of the XBF-PN04B or XBF-PN08B module.
AXIS Input Axis number to control. XBF-PN04B:1~4, XBF-PN08B:1~8
MST_AXIS Input Master axis number. XBF-PN04B:1~4, XBF-PN08B:1~8 and must not be the axis executing the XPM_SSS.
MST_RAT Input Master speed ratio value. Value can be between -32,768 thru 32767.
SLV_RAT Input Sub-axis speed ratio value can be between -32,768 thru 32767.
DONE Output Status that function block is done.
STAT Output Current status of the function block. Non-zero numbers will be an error or warning.

This example is in scan program LP634_XPM_SSS_Example in OnlineHelp_ECAT_Example. In this example Axis 1 is the master axis and Axis 2 is the sub-axis.

  • When the ‘Run_Example’ variable is true, Axis 1 will do a speed control move to 1000 pulses/sec and Axis2 will execute an XPM_SSS function block.

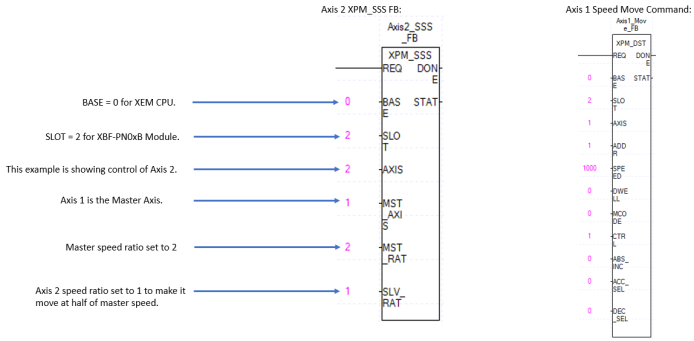

  • Axis 2’s XPM_SSS is setup to speed synchronize with Axis 1 at half of Axis 1’s speed.

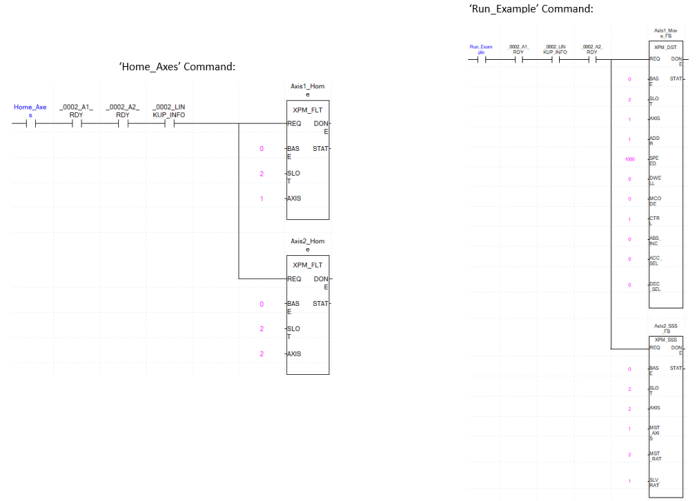

XPM_SSS LD Code

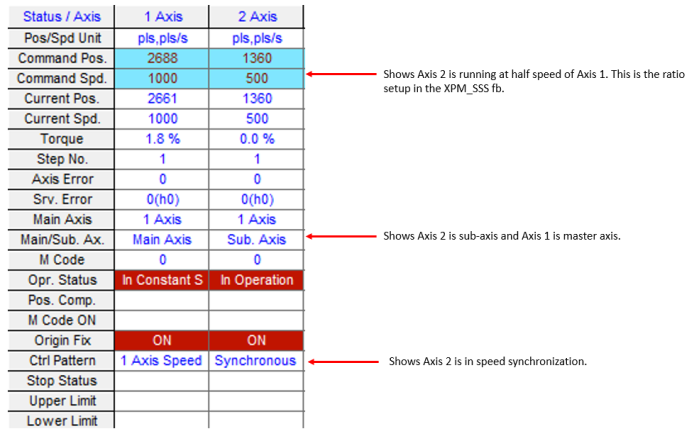

XG-PM Monitoring for XPM_SSS example

XPM_SSSP is used to control the operating speed between two axes at the set ratio. The sub-axis will stop when its position reaches the POS value. The synchronization is done with the Master Ratio and Sub-axis Ratio.

  • If master ratio value is larger, then the sub-axis will move slower than the master.

  • If sub-axis ratio value is larger, then the sub-axis will move faster than the master.

  • The sub-axis will move in the same direction as the master axis if the ratio is positive.

  • The sub-axis will move in the opposite direction of the master axis if the ratio is negative.

Element Name Element Type Description
REQ Input Edge detected request to execute the function block.
BASE Input Base number of the motion controller. Set to 0.
SLOT Input Slot number of the motion controller. Set to the slot number of the XBF-PN04B or XBF-PN08B module.
AXIS Input Axis number to controlXBF-PN04B:1~4, XBF-PN08B:1~8
MST_AXIS Input Master axis number. XBF-PN04B:1~4, XBF-PN08B:1~8 and must not be the axis executing the XPM_SSS.
MST_RAT Input Master speed ratio value. Value can be between -32,768 thru 32767.
SLV_RAT Input Sub-axis speed ratio value. Value can be between -32,768 thru 32767.
POS Input Target position of the sub-axis.
DONE Output Status that function block is done.
STAT Output Current status of the function block. Non-zero numbers will be an error or warning.

This example is in scan program LP634_XPM_SSSP_Example in OnlineHelp_ECAT_Example. In this example Axis 1 is the master axis and Axis 2 is the sub-axis.

  • When the ‘Run_Example’ variable is true, Axis 1 will do a speed control move to 1000 pulses/sec and Axis2 will execute an XPM_SSSP function block.

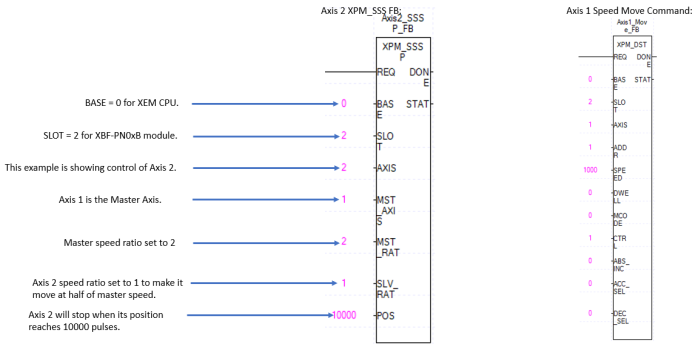

  • Axis 2’s XPM_SSSP is setup to speed synchronize with Axis 1 at half of Axis 1’s speed.

  • Axis 2 will stop after its position reaches 10000 pulses.

  • Execute ‘Home_Axes’ command before ‘Run_Example’.

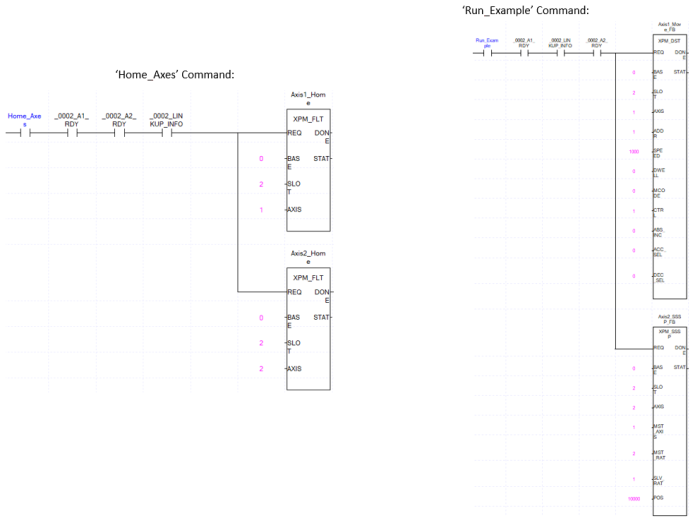

XPM_SSSP LD Code

XG-PM Monitoring for XPM_SSSP example

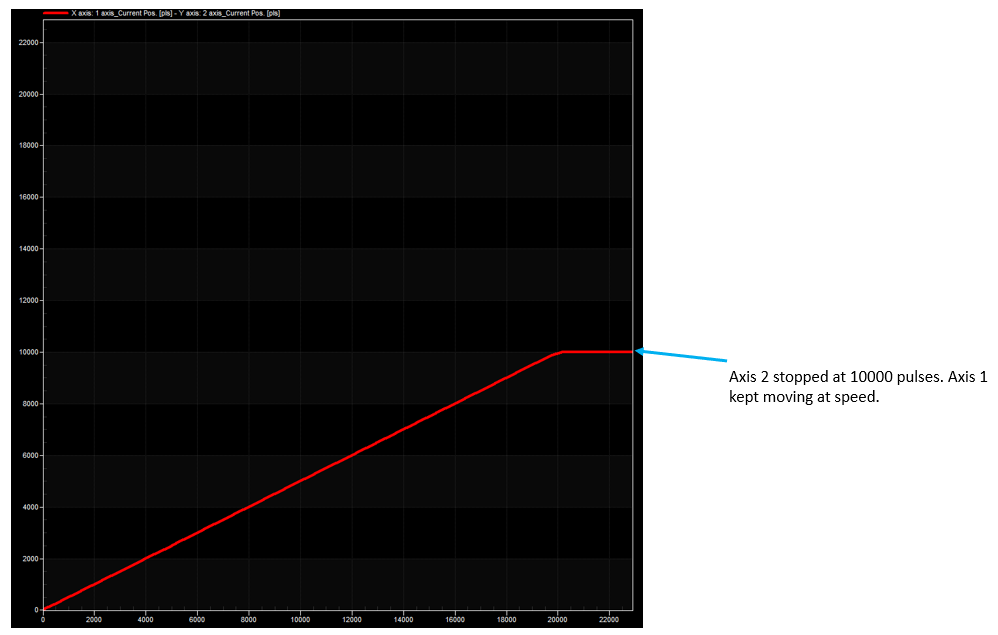

Trend Monitoring for XPM_SSSP example
