Setting up Axis Parameters
Video Tutorial

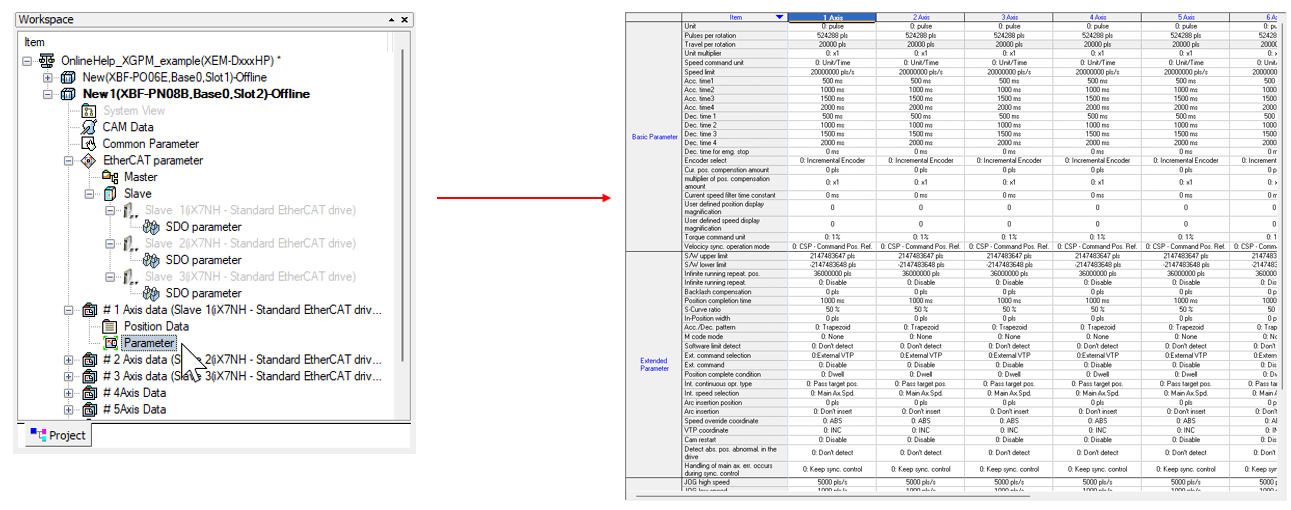

Double click the Parameter file under an axis to open the Axis parameters. The parameter window will have the configuration for all axes available to the XEM CPU.

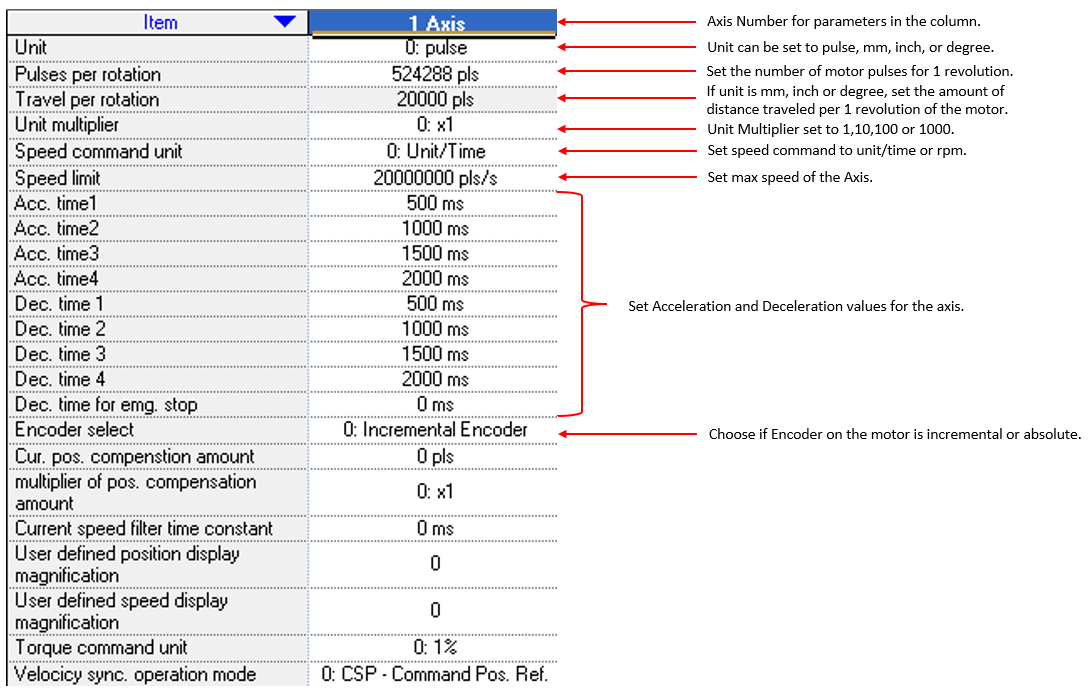

Basic Parameters
LP602-4
