Importing EtherCAT Servo Drive Information Files into XG-PM
Video Tutorial
The EtherCAT Servo Drive information files contain servo parameters for the drive being controlled over EtherCAT.
-
The iX7NH servo drive’s file is included with the XG-PM software.
-
Third party EtherCAT drives can be added to the XG-PM software.
-
All drive information files should be xml files.
| Step | Action |
|---|---|
| 1 |
Download the EtherCAT Drive information file from the vendor’s website. Close the XG-PM software. This example uses the xml file for a 3rd-party Beckhoff AX2 servo drive.
|
| 2 |
Navigate to the DriveInfo folder for the XG5000 directory. The default location is C:\XG5000\XGPM\l.eng\DriveInfo.
|
| 3 |

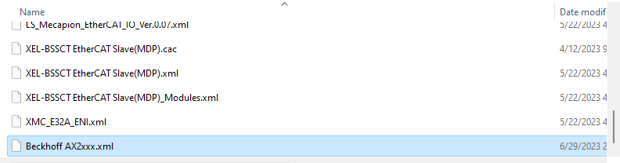

Copy and Paste the EtherCAT drive information file into the DriveInfo folder.
|
| 4 |

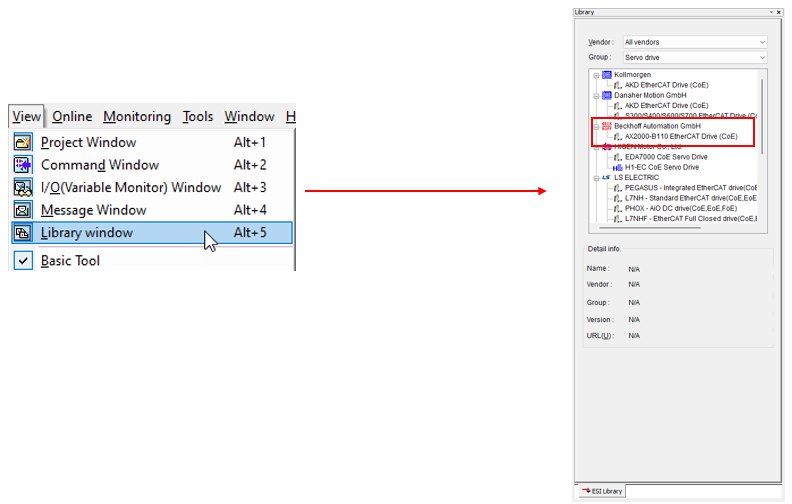

Start up the XG-PM program from XG5000 to see if the file is imported correctly. Go to View menu è Library Window to make sure it is visible.
|
