Special Module Monitoring
Special Modules are all analog, temperature sensing, high speed counter and load cell modules.
| Step | Action |
|---|---|
| 1 | Connect to the XEL-BSSRT with XG5000. |
| 2 |
Select Monitor menu รจ Special Module Monitoring.
|
| 3 |

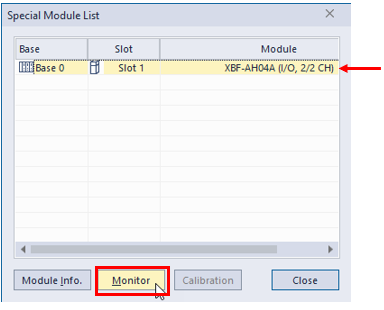

Select the module to monitor and press the Monitor button. This example shows an XBF-AH04A module.
|
| 4 |

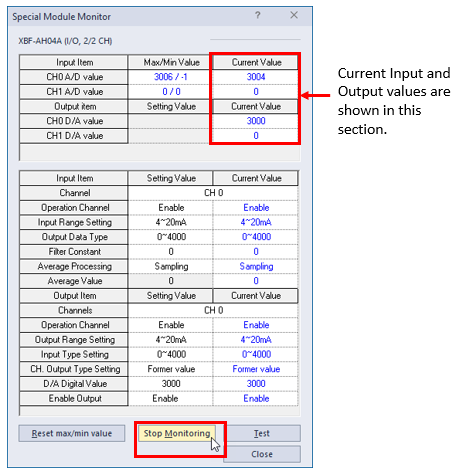

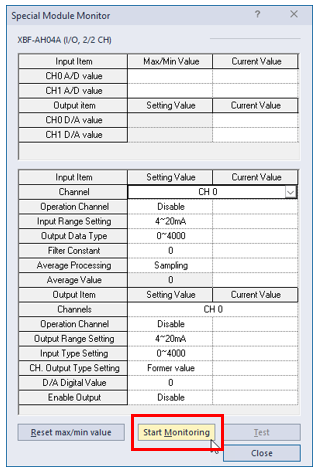

Press the Start Monitoring button to read special module input and output values.
Press Stop Monitoring to stop updating values.
|
