Digital Module Monitoring and Testing

Digital Input and Outputs are monitored and tested from the System Monitoring screen of XG5000. Outputs can be turned on or off while the XEL-BSSRT is in RUN or STOP mode.

Step	Action
1	Connect to the XEL-BSSRT with XG5000.
2	Go to Monitor menu è System Monitoring.
3	The ‘Squares’ are inputs of a module and the ‘Circles’ are the outputs of a module. This example shows the combo digital XBE-DR16A module. Double-clicking a circle will allow the user to test a digital output.

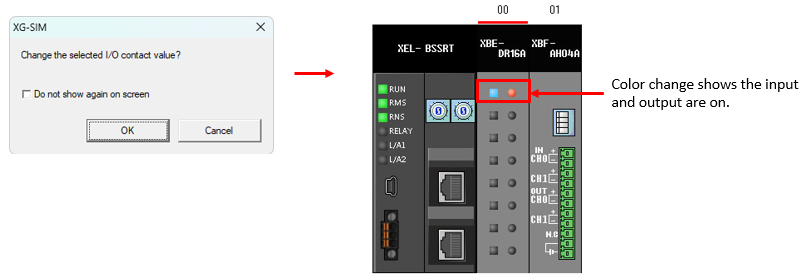

4	Press OK to change the state of the digital output. Double-clicking the same circle will turn off the digital output.
