Manually Changing Analog I/O Values

Follow the steps below to manually change analog I/O values.

Step	Action
1	Enable channel monitoring in XG-SIM. Make sure Analog Channels are enabled in your project. The Enable/Disable button will be surrounded by a small blue box when monitoring is enabled.

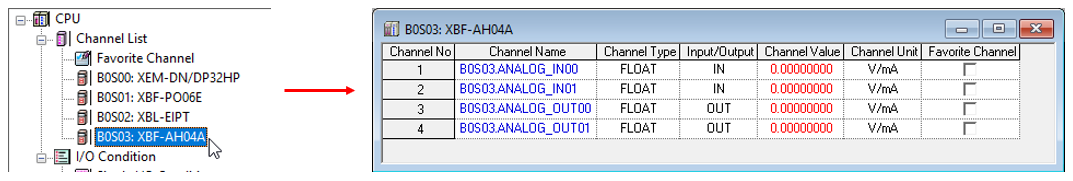

2	Double-click on the analog modules to monitor and change values. This example shows XBF-AH04A.

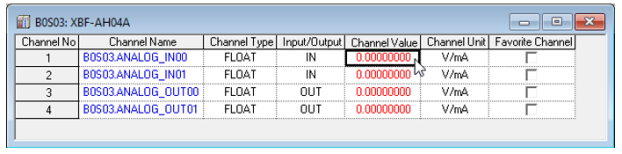

3	Double-click on the Channel Value column entry for the I/O point to change. This example shows analog input 00 being changed.

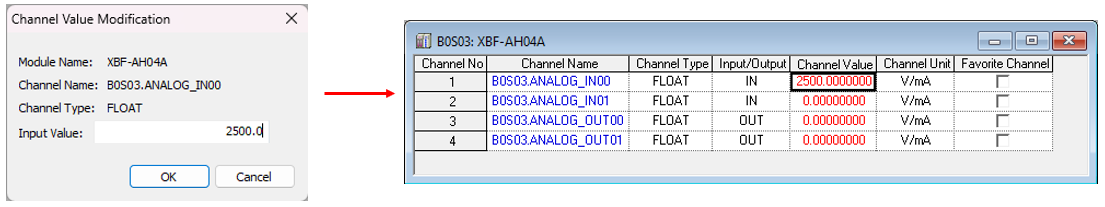

4	Set to the desired value. This example sets a value of 2500.0 to analog input 00.

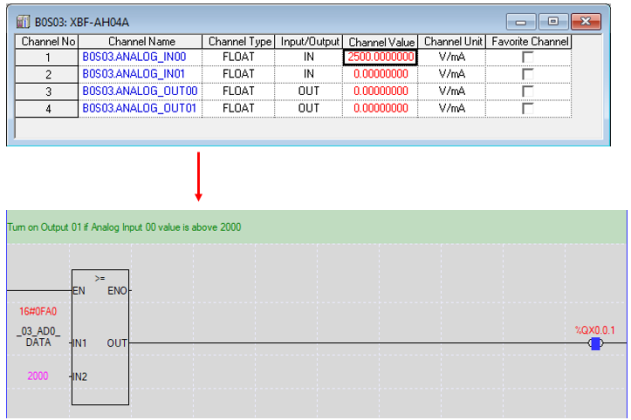

5	Check monitor mode of user program to make sure input is the value that was just set.
