Manually Changing Digital I/O Values

Follow the steps below to manually change digital I/O values.

Step	Action
1	Enable channel monitoring in XG-SIM. The Enable/Disable button will be surrounded by a small blue box when monitoring is enabled.

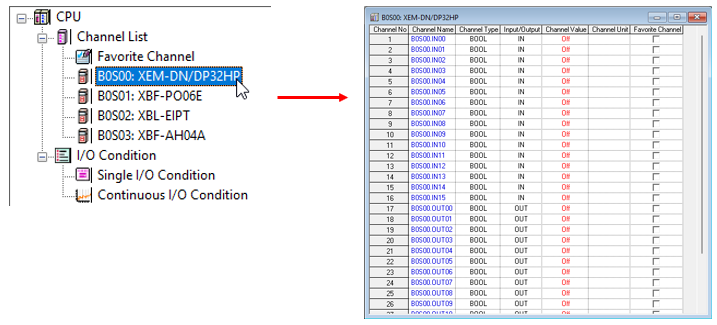

2	Double-click on the I/O modules to monitor and change values. The built-in I/O will be on the CPU module.

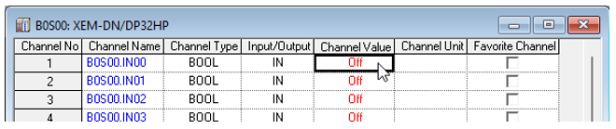

3	Double-click on the Channel Value column entry for the I/O point to change. This example shows input 00 being changed.

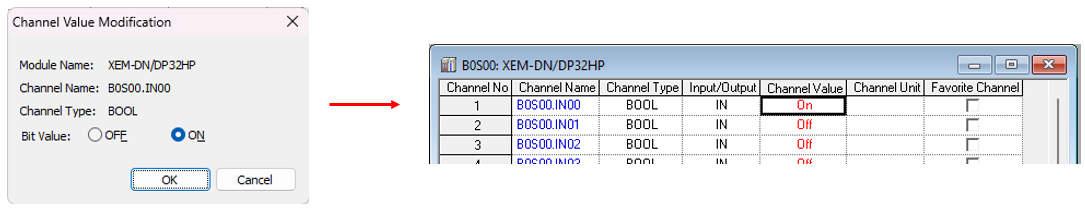

4	Set to the desired value. This example turns on input 00.

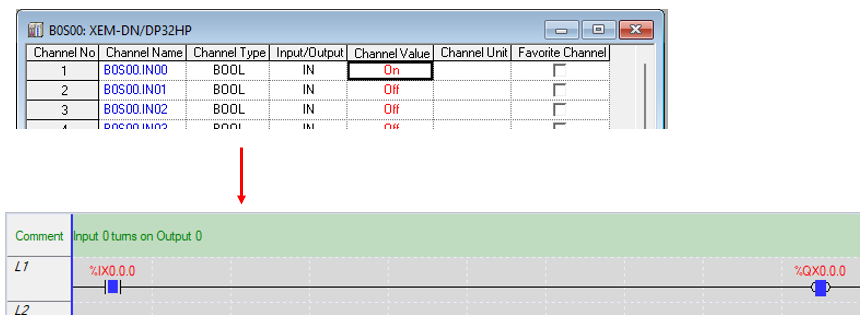

5	Check monitor mode of user program to make sure input is the status that was just set.
