Starting SG-SIM

Follow the steps below to start SG-SIM.

Step	Action
1	Go to the Tools menu in XG-5000 and select Start Simulator.

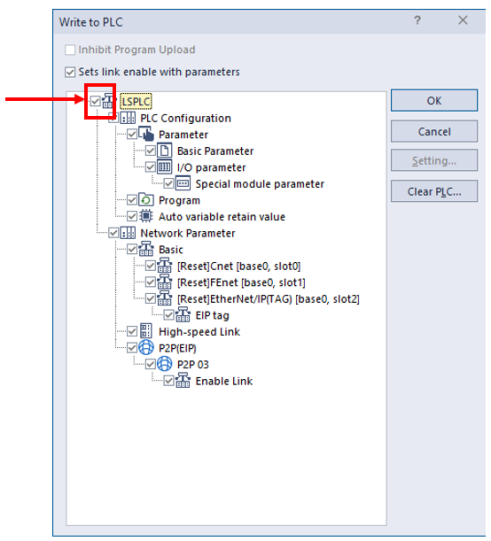

2	Select the checkbox next to the PLC to download all program items.

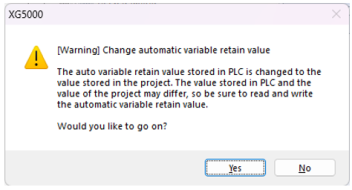

3	Press Yes on the automatic variable pop-up message.

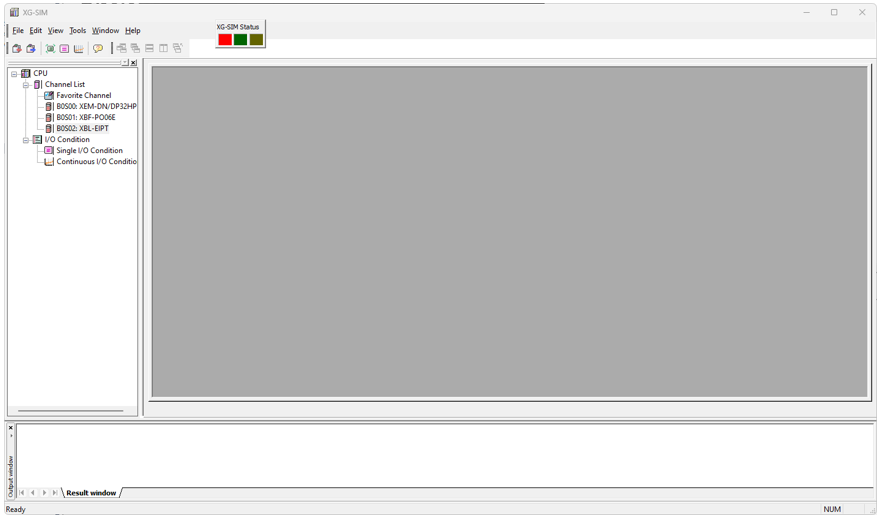

4	Press OK on Writing completed pop-up. The XG-SIM window will open.
