Description

With this dialog, you can assign test values to the Memory Addresses embedded in the ASCII Message and check the result.

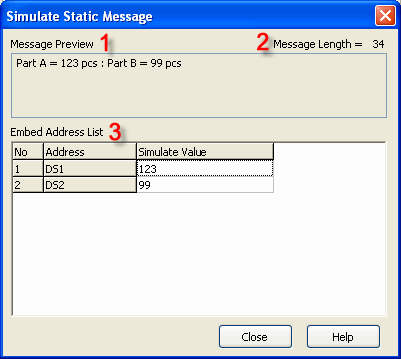

Setup

1 Message Preview: This field displays the ASCII Message that will be sent through the Com Port.

2 Message Length: This is the number of Characters used in the ASCII Message displayed in the Message Preview field.

3 Embed Address List: All Memory Addresses Embedded in the ASCII Message are displayed in this list. You can assign a Simulation value to each Memory Address. The ASCII Message in the Message Preview field is updated automatically.

Example

This is an Example of the Static Text Message.  Memory Addresses DS1 and DS2 are embedded in the Message.

Click the Simulate button to open the Simulate Static Message dialog. Assign 123 to DS1 and 99 to DS2 as the Simulation value in the Embed Address List as shown below.

The ASCII Message including the Simulation values is displayed in the Message Preview field.
