AutomationDirect Productivity Addressing

Topic: CM515

System ID	Address Range	Max Rows	Max Columns	Max Chars	Read/Write	C-more Data Type
C	000001 - 999999	—	—	—	R/W	Discrete
AR1C	000001 - 999999	65535	—	—	R/W	Discrete
AR2C	000001 - 999999	65535	65535	—	R/W	Discrete
DI	0.1.1.1 - 99.5.16.256	—	—	—	Read Only	Discrete
DO	0.1.1.1 - 99.5.16.256	—	—	—	R/W	Discrete
S16	000001 - 999999	—	—	—	R/W	Signed int 16
AR1S16	000001 - 999999	65535	—	—	R/W	Signed int 16
AR2S16	000001 - 999999	65535	65535	—	R/W	Signed int 16
US16	000001 - 999999	—	—	—	R/W	Unsigned int 16 (with Hex option in objects)
AR1US16	000001 - 999999	65535	—	—	R/W	Unsigned int 16 (with Hex option in objects)
AR2US16	000001 - 999999	65535	65535	—	R/W	Unsigned int 16 (with Hex option in objects)
S32	000001 - 999999	—	—	—	R/W	Signed int 32
AR1S32	000001 - 999999	65535	—	—	R/W	Signed int 32
AR2S32	000001 - 999999	65535	65535	—	R/W	Signed int 32
AIS32	0.1.1.1 - 99.5.16.256	—	—	—	Read Only	Signed int 32
AOS32	0.1.1.1 - 99.5.16.256	—	—	—	R/W	Signed int 32
F32	000001 - 999999	—	—	—	R/W	Floating PT 32
AR1F32	000001 - 999999	65535	—	—	R/W	Floating PT 32
AR2F32	000001 - 999999	65535	65535	—	R/W	Floating PT 32
AIF32	0.1.1.1 - 99.5.16.256	—	—	—	Read Only	Floating PT 32
US8	000001 - 999999	—	—	—	R/W	Unsigned int 16 (with Hex option in objects)
AR1US8	000001 - 999999	65535	—	—	R/W	Unsigned int 16 (with Hex option in objects)
AR2US8	000001 - 999999	65535	65535	—	R/W	Unsigned int 16 (with Hex option in objects)
BCD16	000001 - 999999	—	—	—	R/W	BCD int 16
AR1BCD16	000001 - 999999	65535	—	—	R/W	BCD int 16
AR2BCD16	000001 - 999999	65535	65535	—	R/W	BCD int 16
BCD32	000001 - 999999	—	—	—	R/W	BCD int 32
AR1BCD32	000001 - 999999	65535	—	—	R/W	BCD int 32
AR2BCD32	000001 - 999999	65535	65535	—	R/W	BCD int 32
STR	000001 - 999999	—	—	128	R/W	ASCII String
AR1STR	000001 - 999999	65535	—	128	R/W	ASCII String
AR2STR	000001 - 999999	—	—	128	R/W	ASCII String
SBR	000001 - 999999	—	—	—	Read Only	Discrete
SBRW	000001 - 999999	—	—	—	R/W	Discrete
SWR	000001 - 999999	—	—	—	Read Only	Signed int 16
SWRW	000001 - 999999	—	—	—	R/W	Signed int 16
SSTR	000001 - 999999	—	—	50	Read Only	ASCII String
MST	0.1.1.1 - 99.5.16.256	—	—	—	Read Only	Discrete

* For DI, DO, AIS32, AOS32, AIF32 and MST Data types, the System ID number is associated with a physical location (module). The explanation for the System ID number is shown below:

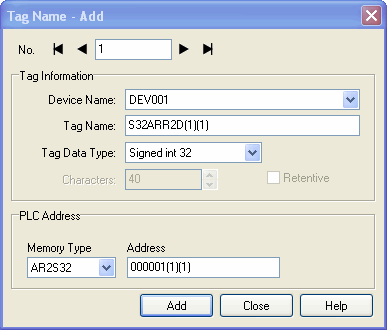

The dash that is seen between the memory type and the System ID number in the Productivity Suite software is not accepted in the C-more programming software. Also note that you cannot enter a comma between two indices of a two dimension array in the C-more programming software. See the captures shown below:

For one dimensional arrays use SystemID (Column) and for two dimensional arrays use SystemID (Row)(Column).

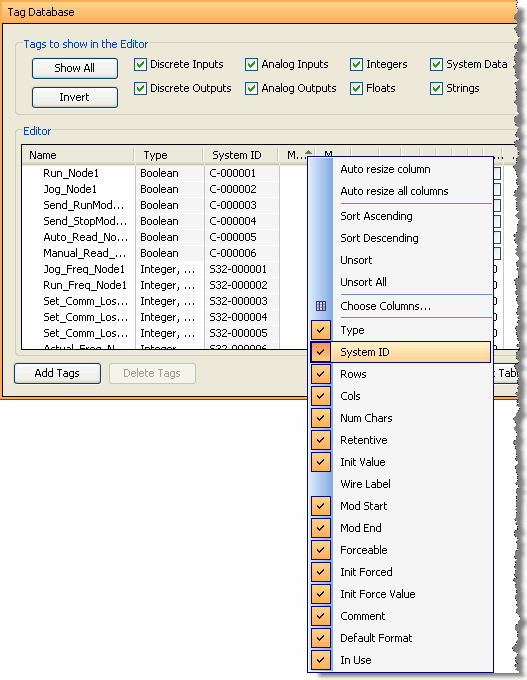

Note: The System ID associated with each Productivity3000 Tag is displayed in the Tag Database window of the Productivity Suite Programming Software. If the System ID column is not visible in the Tag Database, it can be made visible by right clicking on any of the column headers and selecting System ID (shown below).
